US Mail OCR

Mindee’s US Mail OCR API uses deep learning to automatically, accurately, and instantaneously parse your documents details. In a few seconds, the API extracts a set of data from your PDFs or photos of US mails, including:

Sender Name
Sender Address
Recipient Names
Recipient Addresses

The US Mail OCR API supports documents from the US. The documents from other nationalities and states are not supported with this model.

Set up the API

Create an API key

To begin using the Mindee V1 OCR API, your first step is to create your V1 API key.

To test your API, you can use the sample document provided below.

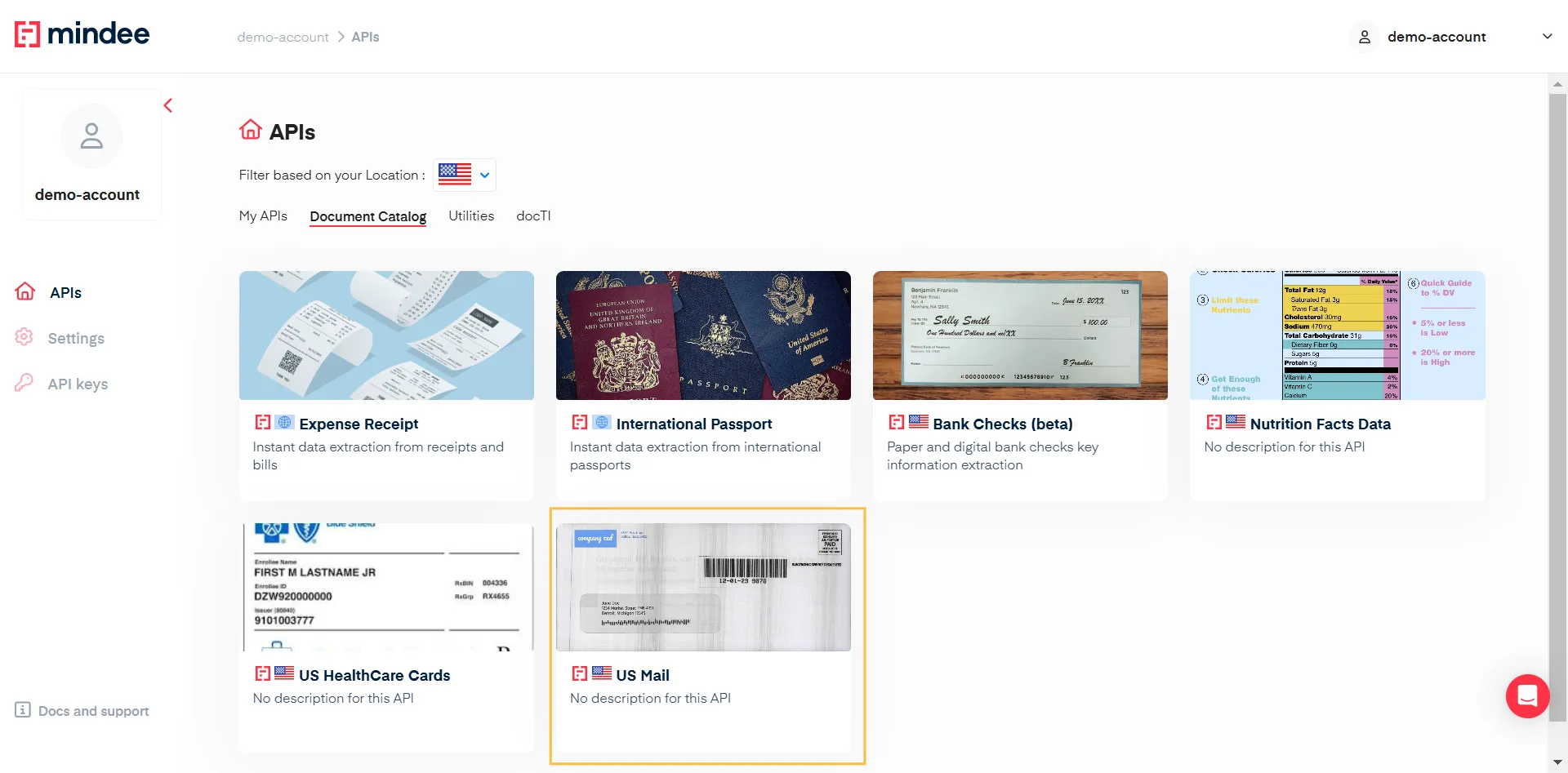

Access your US Mail OCR by clicking on the corresponding product card in the Document Catalog
From the left navigation, go to documentation > API Reference, you'll find sample code in popular languages and command line.

from mindee import Client, product, AsyncPredictResponse

# Init a new client
mindee_client = Client(api_key="my-api-key-here")

# Load a file from disk
input_doc = mindee_client.source_from_path("/path/to/the/file.ext")

# Load a file from disk and enqueue it.
result: AsyncPredictResponse = mindee_client.enqueue_and_parse(
    product.us.UsMailV2,
    input_doc,
)

# Print a brief summary of the parsed data
print(result.document)

const mindee = require("mindee");
// for TS or modules:
// import * as mindee from "mindee";

// Init a new client
const mindeeClient = new mindee.Client({ apiKey: "my-api-key-here" });

// Load a file from disk
const inputSource = mindeeClient.docFromPath("/path/to/the/file.ext");

// Parse the file
const apiResponse = mindeeClient.enqueueAndParse(
  mindee.product.us.UsMailV2,
  inputSource
);

// Handle the response Promise
apiResponse.then((resp) => {
  // print a string summary
  console.log(resp.document.toString());
});

using Mindee;
using Mindee.Input;
using Mindee.Product.Us.UsMail;

string apiKey = "my-api-key-here";
string filePath = "/path/to/the/file.ext";

// Construct a new client
MindeeClient mindeeClient = new MindeeClient(apiKey);

// Load an input source as a path string
// Other input types can be used, as mentioned in the docs
var inputSource = new LocalInputSource(filePath);

// Call the product asynchronously with auto-polling
var response = await mindeeClient
    .EnqueueAndParseAsync<UsMailV2>(inputSource);

// Print a summary of all the predictions
System.Console.WriteLine(response.Document.ToString());

// Print only the document-level predictions
// System.Console.WriteLine(response.Document.Inference.Prediction.ToString());

#
# Install the Ruby client library by running:
# gem install mindee
#

require 'mindee'

# Init a new client
mindee_client = Mindee::Client.new(api_key: 'my-api-key')

# Load a file from disk
input_source = mindee_client.source_from_path('/path/to/the/file.ext')

# Parse the file
result = mindee_client.parse(
  input_source,
  Mindee::Product::US::UsMail::UsMailV3
)

# Print a full summary of the parsed data in RST format
puts result.document

# Print the document-level parsed data
# puts result.document.inference.prediction

import com.mindee.MindeeClient;
import com.mindee.input.LocalInputSource;
import com.mindee.parsing.common.AsyncPredictResponse;
import com.mindee.product.us.usmail.UsMailV2;
import java.io.File;
import java.io.IOException;

public class SimpleMindeeClient {

  public static void main(String[] args) throws IOException, InterruptedException {
    String apiKey = "my-api-key-here";
    String filePath = "/path/to/the/file.ext";

    // Init a new client
    MindeeClient mindeeClient = new MindeeClient(apiKey);

    // Load a file from disk
    LocalInputSource inputSource = new LocalInputSource(new File(filePath));

    // Parse the file asynchronously
    AsyncPredictResponse<UsMailV2> response = mindeeClient.enqueueAndParse(
        UsMailV2.class,
        inputSource
    );

    // Print a summary of the response
    System.out.println(response.toString());

    // Print a summary of the predictions
//  System.out.println(response.getDocumentObj().toString());

    // Print the document-level predictions
//    System.out.println(response.getDocumentObj().getInference().getPrediction().toString());

    // Print the page-level predictions
//    response.getDocumentObj().getInference().getPages().forEach(
//        page -> System.out.println(page.toString())
//    );
  }

}

API_KEY='my-api-key-here'
ACCOUNT='mindee'
ENDPOINT='us_mail'
VERSION='2'
FILE_PATH='/path/to/your/file.png'

# Maximum amount of retries to get the result of a queue
MAX_RETRIES=10

# Delay between requests
DELAY=6

# Enqueue the document for async parsing
QUEUE_RESULT=$(curl -sS --request POST \
  -H "Authorization: Token $API_KEY" \
  -H "Content-Type: multipart/form-data" \
  -F "document=@$FILE_PATH" \
  "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/predict_async")

# Status code sent back from the server
STATUS_CODE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']status_code[\"|']:[\s][\"|']*[a-zA-Z0-9-]*" | rev | cut --complement -f2- -d" " | rev)

# Check that the document was properly queued
if [ -z "$STATUS_CODE" ] || [ "$STATUS_CODE" -gt 399 ] || [ "$STATUS_CODE" -lt 200 ]
then
  if [ -z "$STATUS_CODE" ]
  then
    echo "Request couldn't be processed."
    exit 1
  fi
  echo "Error $STATUS_CODE was returned by API during enqueuing. "

  # Print the additional details, if there are any:
  ERROR=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']error[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
  if [ -z "$ERROR" ]
  then
    exit 1
  fi

  # Details on the potential error:
  ERROR_CODE=$(echo "$ERROR" | grep -oP "[\"|']code[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  MESSAGE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']message[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  DETAILS=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']details[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  echo "This was the given explanation:"
  echo "-------------------------"
  echo "Error Code: $ERROR_CODE"
  echo "Message: $MESSAGE"
  echo "Details: $DETAILS"
  echo "-------------------------"
  exit 1
else

  echo "File sent, starting to retrieve from server..."

  # Get the document's queue ID
  QUEUE_ID=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']id[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)

  # Amount of attempts to retrieve the parsed document were made
  TIMES_TRIED=1

  # Try to fetch the file until we get it, or until we hit the maximum amount of retries
  while [ "$TIMES_TRIED" -lt "$MAX_RETRIES" ]
  do
    # Wait for a bit at each step
    sleep $DELAY

    # Note: we use -L here because the location of the file might be behind a redirection
    PARSED_RESULT=$(curl -sS -L \
      -H "Authorization: Token $API_KEY" \
      "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/documents/queue/$QUEUE_ID")

    # Isolating the job (queue) & the status to monitor the document
    JOB=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']job[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
    QUEUE_STATUS=$(echo "$JOB" | grep -ioP "[\"|']status[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)
    if [ "$QUEUE_STATUS" = "completed" ]
    then
      # Print the result
      echo "$PARSED_RESULT"

      # Optional: isolate the document:
      # DOCUMENT=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']document[\"|']:[\s].*([\"|']job[\"|'])" | rev | cut -f2- -d"," | rev)
      # echo "{$DOCUMENT}"

      # Remark: on compatible shells, fields can also be extracted through the use of tools like jq:
      # DOCUMENT=$(echo "$PARSED_RESULT" | jq '.["document"]')
      exit 0
    fi
    TIMES_TRIED=$((TIMES_TRIED+1))
  done
fi

echo "Operation aborted, document not retrieved after $TIMES_TRIED tries"
exit 1

<?php

use Mindee\Client;
use Mindee\Product\Us\UsMail\UsMailV2;

// Init a new client
$mindeeClient = new Client("my-api-key-here");

// Load a file from disk
$inputSource = $mindeeClient->sourceFromPath("/path/to/the/file.ext");

// Parse the file asynchronously
$apiResponse = $mindeeClient->enqueueAndParse(UsMailV2::class, $inputSource);

echo $apiResponse->document;

Replace my-api-key-here with your new API key, or use the select an API key feature and it will be filled automatically.
Copy and paste the sample code of your desired choice in your application, code environment, terminal etc.
Replace /path/to/the/file.ext with the path to your input document.

Remember to replace with your V1 API key.

Run your code. You will receive a JSON response with your document details.

API Response

Here is the full JSON response you get when you call the API:

{
    "api_request": {
        "error": {},
        "resources": [
            "document",
            "job"
        ],
        "status": "success",
        "status_code": 200,
        "url": "https://api.mindee.net/v1/products/mindee/us_mail/v2/documents/eb4c9ccc-a20c-46de-9f75-fd6fdc5115ec"
    },
    "document": {
        "id": "eb4c9ccc-a20c-46de-9f75-fd6fdc5115ec",
        "inference": {
            "extras": {},
            "finished_at": "2024-10-30T14:54:19.789000",
            "is_rotation_applied": true,
            "pages": [
                {
                    "extras": {},
                    "id": 0,
                    "orientation": {
                        "value": 0
                    },
                    "prediction": {}
                }
            ],
            "prediction": {
                "recipient_addresses": [
                    {
                        "city": "Detroit",
                        "complete": "1234 Market Street PMB 4321, Detroit, Michigan 12345",
                        "is_address_change": false,
                        "postal_code": "12345",
                        "private_mailbox_number": "4321",
                        "state": "MI",
                        "street": "1234 Market Street"
                    }
                ],
                "recipient_names": [
                    {
                        "value": "Jane Doe"
                    }
                ],
                "sender_address": {
                    "city": "Dallas",
                    "complete": "54321 Elm Street, Dallas, Texas 54321",
                    "postal_code": "54321",
                    "state": "TX",
                    "street": "54321 Elm Street"
                },
                "sender_name": {
                    "value": "zed"
                }
            },
            "processing_time": 3.072,
            "product": {
                "features": [
                    "sender_name",
                    "sender_address",
                    "recipient_names",
                    "recipient_addresses"
                ],
                "name": "mindee/us_mail",
                "type": "standard",
                "version": "2.0"
            },
            "started_at": "2024-10-30T14:54:16.506000"
        },
        "n_pages": 1,
        "name": "US-mail-sample.jpg"
    },
    "job": {
        "available_at": "2024-10-30T14:54:19.799000",
        "error": {},
        "id": "02e29373-20fe-4a92-8245-7edc9d4ca8e5",
        "issued_at": "2024-10-30T14:54:16.506000",
        "status": "completed"
    }
}

You can find the prediction within the prediction key found in document > inference > prediction for document-level predictions: it contains the different fields extracted at the document level, meaning that for multi-pages PDFs, we reconstruct a single object using all the pages.

Detailed Field Information

Using the above document example the following are the basic fields that can be extracted.

Sender Name

sender_name: The name of the sender.

{
  "sender_name": {
    "value": "zed"
  }
}

Sender Address

sender_address: The address of the sender.
- complete: The complete address of the sender.
- street: The street of the sender's address.
- city: The city of the sender's address.
- state: Second part of the ISO 3166-2 code, consisting of two letters indicating the US State.
- postal_code: The postal code of the sender's address.

{
  "sender_address": {
    "city": "Dallas",
    "complete": "54321 Elm Street, Dallas, Texas 54321",
    "postal_code": "54321",
    "state": "TX",
    "street": "54321 Elm Street"
  }
}

Recipient Names

recipient_names: The names of the recipients.

{
  "recipient_names": [
    {
      "value": "Jane Doe"
    }
  ]
}

Recipient Addresses

recipient_address: The address of the recipients.
- complete: The complete address of the recipient.
- street: The street of the recipient’s address.
- city: The city of the recipient’s address.
- state: Second part of the ISO 3166-2 code, consisting of two letters indicating the US State.
- postal_code: The postal code of the recipient’s address.

{
  "recipient_addresses": [
    {
      "city": "Detroit",
      "complete": "1234 Market Street PMB 4321, Detroit, Michigan 12345",
      "is_address_change": false,
      "postal_code": "12345",
      "private_mailbox_number": "4321",
      "state": "MI",
      "street": "1234 Market Street"
    }
  ]
}
