# Bill of Lading OCR

Mindee’s Bill Of Lading API uses deep learning to automatically, accurately, and instantaneously parse your documents details. In a few seconds, the API extracts a set of data from your PDFs or photos of Bill of Lading, including:

* Bill of Lading Number
* Shipper
* Consignee
* Notify Party
* Carrier
* Items
* Port of Loading
* Port of Discharge
* Place of Delivery
* Date of Issue
* Departure Date

## Set up the API

{% hint style="info" %}
**Create an API key**

To begin using the Mindee V1 OCR API, your first step is to [create your V1 API key](https://docs.mindee.com/v1/get-started/create-api-key).
{% endhint %}

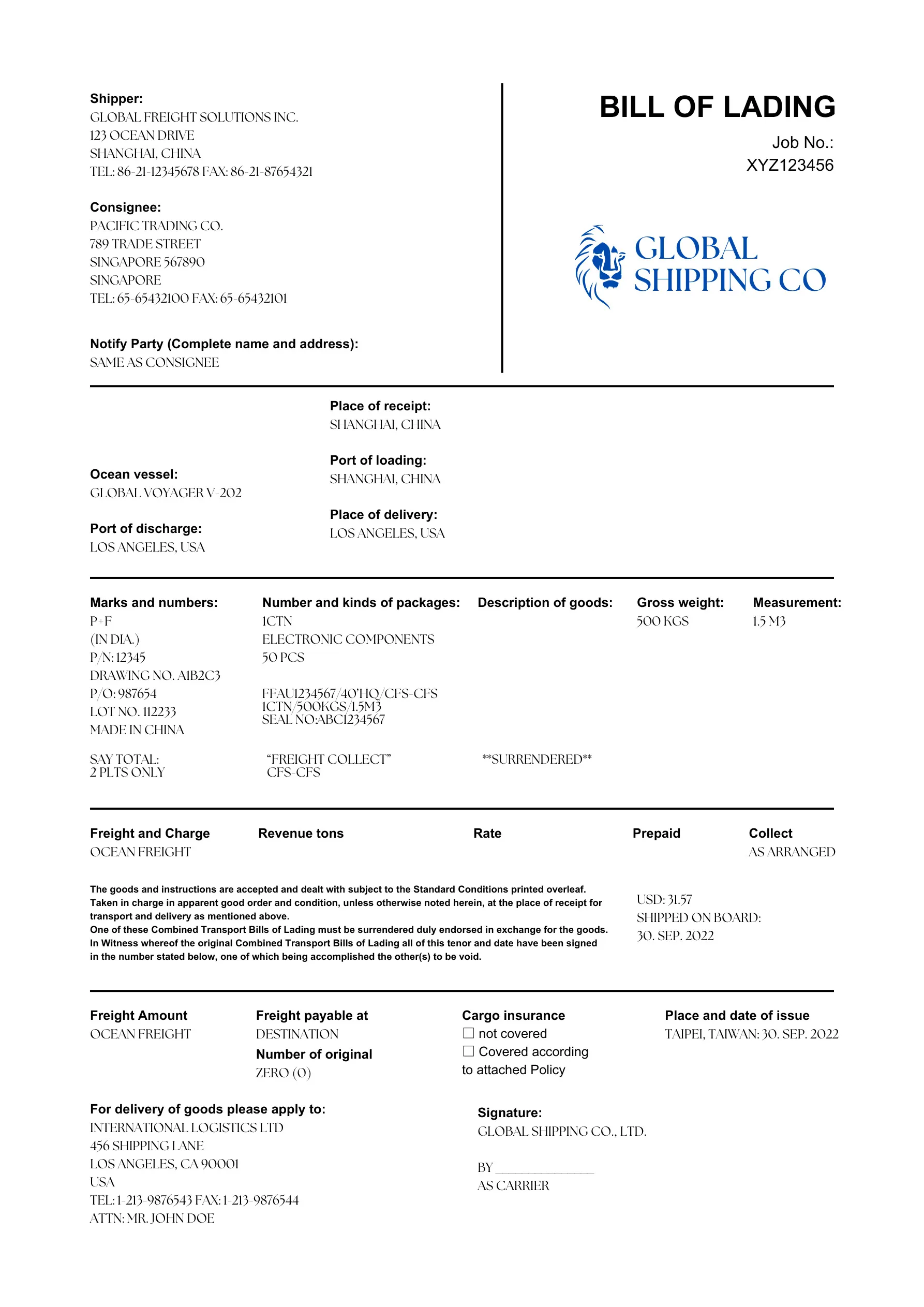

1. You'll need a Bill Of Lading. You can use one of the sample documents provided below.

   <figure><img src="https://126655343-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2al1MDqAP9Dg9iDRjkWg%2Fuploads%2Fgit-blob-ff5eedf08f762af6bb490d71d31a2f242f2db57f%2F8a326ca5a84b69786fb3840be85ef5d9a8f071583e4753a3edba2cf47f91e0f9-image.png?alt=media" alt=""><figcaption></figcaption></figure>

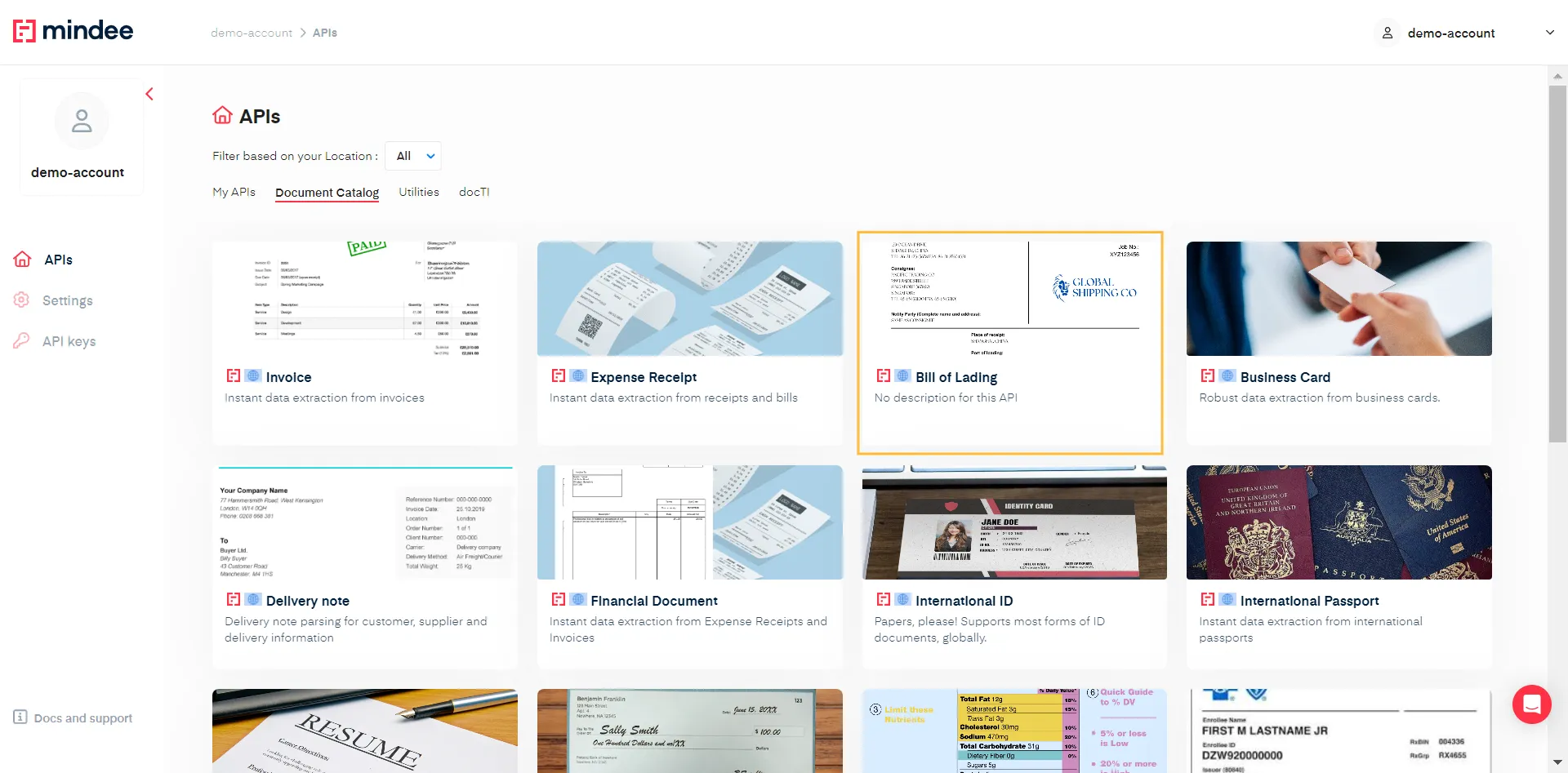

2. Access your Bill of Lading API by clicking on the corresponding product card in the **Document Catalog**

   <figure><img src="https://126655343-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F2al1MDqAP9Dg9iDRjkWg%2Fuploads%2Fgit-blob-920864e1e30f2d90cf16450102233f7e9a01997c%2Fe9997146359d83b25fc0db4eb5df74847ca2923524b58f5b57abb856c0422e74-image.png?alt=media" alt=""><figcaption></figcaption></figure>
3. From the left navigation, go to [**documentation**](doc:platform-tour#api---documentation) **> API Reference**, you'll find sample code in popular languages and command line.

{% tabs %}
{% tab title="Python" %}

{% endtab %}

{% tab title="undefined" %}

```python
from mindee import Client, product, AsyncPredictResponse

# Init a new client
mindee_client = Client(api_key="my-api-key-here")

# Load a file from disk
input_doc = mindee_client.source_from_path("/path/to/the/file.ext")

# Load a file from disk and enqueue it.
result: AsyncPredictResponse = mindee_client.enqueue_and_parse(
    product.BillOfLadingV1,
    input_doc,
)

# Print a brief summary of the parsed data
print(result.document)
```

{% endtab %}

{% tab title="Node.js" %}

```javascript
const mindee = require("mindee");
// for TS or modules:
// import * as mindee from "mindee";

// Init a new client
const mindeeClient = new mindee.v1.Client({ apiKey: "my-api-key-here" });

// Load a file from disk
const inputSource = mindeeClient.docFromPath("/path/to/the/file.ext");

// Parse the file
const apiResponse = mindeeClient.enqueueAndParse(
  mindee.v1.product.BillOfLadingV1,
  inputSource
);

// Handle the response Promise
apiResponse.then((resp) => {
  // print a string summary
  console.log(resp.document.toString());
});
```

{% endtab %}

{% tab title=".NET" %}

```csharp
using Mindee;
using Mindee.Input;
using Mindee.Product.BillOfLading;

string apiKey = "my-api-key-here";
string filePath = "/path/to/the/file.ext";

// Construct a new client
MindeeClient mindeeClient = new MindeeClient(apiKey);

// Load an input source as a path string
// Other input types can be used, as mentioned in the docs
var inputSource = new LocalInputSource(filePath);

// Call the product asynchronously with auto-polling
var response = await mindeeClient
    .EnqueueAndParseAsync<BillOfLadingV1>(inputSource);

// Print a summary of all the predictions
System.Console.WriteLine(response.Document.ToString());

// Print only the document-level predictions
// System.Console.WriteLine(response.Document.Inference.Prediction.ToString());
```

{% endtab %}

{% tab title="PHP" %}

```php
<?php

use Mindee\Client;
use Mindee\Product\BillOfLading\BillOfLadingV1;

// Init a new client
$mindeeClient = new Client("my-api-key-here");

// Load a file from disk
$inputSource = $mindeeClient->sourceFromPath("/path/to/the/file.ext");

// Parse the file asynchronously
$apiResponse = $mindeeClient->enqueueAndParse(BillOfLadingV1::class, $inputSource);

echo $apiResponse->document;
```

\[
{% endtab %}

{% tab title="Ruby" %}

```ruby
#
# Install the Ruby client library by running:
# gem install mindee
#

require 'mindee'

# Init a new client
mindee_client = Mindee::Client.new(api_key: 'my-api-key')

# Load a file from disk
input_source = mindee_client.source_from_path('/path/to/the/file.ext')

# Parse the file
result = mindee_client.parse(
  input_source,
  Mindee::Product::BillOfLading::BillOfLadingV1
)

# Print a full summary of the parsed data in RST format
puts result.document

# Print the document-level parsed data
# puts result.document.inference.prediction
```

{% endtab %}

{% tab title="Java" %}

```java
import com.mindee.MindeeClient;
import com.mindee.input.LocalInputSource;
import com.mindee.parsing.common.AsyncPredictResponse;
import com.mindee.product.billoflading.BillOfLadingV1;
import java.io.File;
import java.io.IOException;

public class SimpleMindeeClient {

  public static void main(String[] args) throws IOException, InterruptedException {
    String apiKey = "my-api-key-here";
    String filePath = "/path/to/the/file.ext";

    // Init a new client
    MindeeClient mindeeClient = new MindeeClient(apiKey);

    // Load a file from disk
    LocalInputSource inputSource = new LocalInputSource(new File(filePath));

    // Parse the file asynchronously
    AsyncPredictResponse<BillOfLadingV1> response = mindeeClient.enqueueAndParse(
        BillOfLadingV1.class,
        inputSource
    );

    // Print a summary of the response
    System.out.println(response.toString());

    // Print a summary of the predictions
//  System.out.println(response.getDocumentObj().toString());

    // Print the document-level predictions
//    System.out.println(response.getDocumentObj().getInference().getPrediction().toString());

    // Print the page-level predictions
//    response.getDocumentObj().getInference().getPages().forEach(
//        page -> System.out.println(page.toString())
//    );
  }

}
```

{% endtab %}

{% tab title="Bash" %}

```bash
API_KEY='my-api-key-here'
ACCOUNT='mindee'
ENDPOINT='bill_of_lading'
VERSION='1'
FILE_PATH='/path/to/your/file.png'

# Maximum amount of retries to get the result of a queue
MAX_RETRIES=10

# Delay between requests
DELAY=6

# Enqueue the document for async parsing
QUEUE_RESULT=$(curl -sS --request POST \
  -H "Authorization: Token $API_KEY" \
  -H "Content-Type: multipart/form-data" \
  -F "document=@$FILE_PATH" \
  "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/predict_async")

# Status code sent back from the server
STATUS_CODE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']status_code[\"|']:[\s][\"|']*[a-zA-Z0-9-]*" | rev | cut --complement -f2- -d" " | rev)

# Check that the document was properly queued
if [ -z "$STATUS_CODE" ] || [ "$STATUS_CODE" -gt 399 ] || [ "$STATUS_CODE" -lt 200 ]
then
  if [ -z "$STATUS_CODE" ]
  then
    echo "Request couldn't be processed."
    exit 1
  fi
  echo "Error $STATUS_CODE was returned by API during enqueuing. "

  # Print the additional details, if there are any:
  ERROR=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']error[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
  if [ -z "$ERROR" ]
  then
    exit 1
  fi

  # Details on the potential error:
  ERROR_CODE=$(echo "$ERROR" | grep -oP "[\"|']code[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  MESSAGE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']message[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  DETAILS=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']details[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  echo "This was the given explanation:"
  echo "-------------------------"
  echo "Error Code: $ERROR_CODE"
  echo "Message: $MESSAGE"
  echo "Details: $DETAILS"
  echo "-------------------------"
  exit 1
else

  echo "File sent, starting to retrieve from server..."

  # Get the document's queue ID
  QUEUE_ID=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']id[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)

  # Amount of attempts to retrieve the parsed document were made
  TIMES_TRIED=1

  # Try to fetch the file until we get it, or until we hit the maximum amount of retries
  while [ "$TIMES_TRIED" -lt "$MAX_RETRIES" ]
  do
    # Wait for a bit at each step
    sleep $DELAY

    # Note: we use -L here because the location of the file might be behind a redirection
    PARSED_RESULT=$(curl -sS -L \
      -H "Authorization: Token $API_KEY" \
      "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/documents/queue/$QUEUE_ID")

    # Isolating the job (queue) & the status to monitor the document
    JOB=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']job[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
    QUEUE_STATUS=$(echo "$JOB" | grep -ioP "[\"|']status[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)
    if [ "$QUEUE_STATUS" = "completed" ]
    then
      # Print the result
      echo "$PARSED_RESULT"

      # Optional: isolate the document:
      # DOCUMENT=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']document[\"|']:[\s].*([\"|']job[\"|'])" | rev | cut -f2- -d"," | rev)
      # echo "{$DOCUMENT}"

      # Remark: on compatible shells, fields can also be extracted through the use of tools like jq:
      # DOCUMENT=$(echo "$PARSED_RESULT" | jq '.["document"]')
      exit 0
    fi
    TIMES_TRIED=$((TIMES_TRIED+1))
  done
fi

echo "Operation aborted, document not retrieved after $TIMES_TRIED tries"
exit 1
```

{% endtab %}
{% endtabs %}

* Replace **my-api-key-here** with your new API key, or use the **select an API key** feature and it will be filled automatically.
* Copy and paste the sample code of your desired choice in your application, code environment, terminal etc.
* Replace `/path/to/the/file.ext` with the path to your input document.

{% hint style="warning" %}
Remember to replace with your V1 API key.
{% endhint %}

4. Run your code. You will receive a JSON response with the Bill of Lading details.

## API Response

Here is the full JSON response you get when you call the API:

```json
{
    "api_request": {
        "error": {},
        "resources": [
            "document",
            "job"
        ],
        "status": "success",
        "status_code": 200,
        "url": "https://api.mindee.net/v1/products/mindee/bill_of_lading/v1/documents/.."
    },
    "document": {
        "id": "bae163d3-ea9c-4972-bd28-2a7598d3d424",
        "inference": {
            "extras": {},
            "finished_at": "2024-10-17T15:01:28.197000",
            "is_rotation_applied": true,
            "pages": [
                {
                    "extras": {},
                    "id": 0,
                    "orientation": {
                        "value": 0
                    },
                    "prediction": {}
                }
            ],
            "prediction": {..},
            "processing_time": 7.42,
            "product": {
                "features": [
                    "bill_of_lading_number",
                    "shipper",
                    "consignee",
                    "notify_party",
                    "carrier",
                    "carrier_items",
                    "port_of_loading",
                    "port_of_discharge",
                    "place_of_delivery",
                    "date_of_issue",
                    "departure_date"
                ],
                "name": "mindee/bill_of_lading",
                "type": "standard",
                "version": "1.1"
            },
            "started_at": "2024-10-17T15:01:20.640000"
        },
        "n_pages": 1,
        "name": "Bill_of_lading_sample.jpg"
    },
    "job": {
        "available_at": "2024-10-17T15:01:28.208000",
        "error": {},
        "id": "8ae70ce3-ef4f-44dc-af7c-738b54e44423",
        "issued_at": "2024-10-17T15:01:20.640000",
        "status": "completed"
    }
}
```

You can find the prediction within the `prediction` key found in **`document > inference > prediction` for document-level predictions**: it contains the different fields extracted at the document level, meaning that for multi-pages PDFs, we reconstruct a single object using all the pages.

```json

    "document": {
				    ...
            "prediction": {
                "bill_of_lading_number": {
                    "value": "XYZ123456"
                },
                "carrier": {
                    "name": "GLOBAL SHIPPING CO",
                    "professional_number": null,
                    "scac": null
                },
                "carrier_items": [
                    {
                        "description": "ELECTRONIC COMPONENTS\nP/N: 12345\nDRAWING NO. A1B2C3\nP/O: 987654\nLOT NO. 112233\nMADE IN CHINA",
                        "gross_weight": 500.0,
                        "measurement": 1.5,
                        "measurement_unit": "cbm",
                        "quantity": 50.0,
                        "weight_unit": "kgs"
                    }
                ],
                "consignee": {
                    "address": "789 TRADE STREET, SINGAPORE 567890, SINGAPORE",
                    "email": null,
                    "name": "PACIFIC TRADING CO.",
                    "phone": "65-65432100"
                },
                "date_of_issue": {
                    "value": "2022-09-30"
                },
                "departure_date": {
                    "value": null
                },
                "notify_party": {
                    "address": "789 TRADE STREET, SINGAPORE 567890, SINGAPORE",
                    "email": null,
                    "name": "PACIFIC TRADING CO.",
                    "phone": "65-65432100"
                },
                "place_of_delivery": {
                    "value": "456 SHIPPING LANE, LOS ANGELES, CA 90001, USA"
                },
                "port_of_discharge": {
                    "value": "LOS ANGELES, USA"
                },
                "port_of_loading": {
                    "value": "SHANGHAI, CHINA"
                },
                "shipper": {
                    "address": "123 OCEAN DRIVE, SHANGHAI, CHINA",
                    "email": null,
                    "name": "GLOBAL FREIGHT SOLUTIONS INC.",
                    "phone": "86-21-12345678"
                }
            },
            "processing_time": 7.42,
            "product": {
                "features": [
                    "bill_of_lading_number",
                    "shipper",
                    "consignee",
                    "notify_party",
                    "carrier",
                    "carrier_items",
                    "port_of_loading",
                    "port_of_discharge",
                    "place_of_delivery",
                    "date_of_issue",
                    "departure_date"
                ],
                "name": "mindee/bill_of_lading",
                "type": "standard",
                "version": "1.1"
            },
            "started_at": "2024-10-17T15:01:20.640000"
        },
        "n_pages": 1,
        "name": "Bill_of_lading_sample.jpg"
    },
    "job": {
        "available_at": "2024-10-17T15:01:28.208000",
        "error": {},
        "id": "8ae70ce3-ef4f-44dc-af7c-738b54e44423",
        "issued_at": "2024-10-17T15:01:20.640000",
        "status": "completed"
    }
}
```

## Detailed Field Information

Using the above Bill of Lading example the following are the basic fields that can be extracted.

* [Bill of Lading Number](#bill-of-lading-number)
* [Shipper](#shipper)
* [Consignee](#consignee)
* [Notify Party](#notify-party)
* [Carrier](#carrier)
* [Items](#items)
* [Port of Loading](#port-of-loading)
* [Port of Discharge](#port-of-discharge)
* [Place of Delivery](#place-of-delivery)
* [Date of Issue](#date-of-issue)
* [Departure Date](#departure-date)

### Bill of Lading Number

* **bill\_of\_lading\_number**: Unique identifier assigned to a Bill of Lading.

```json
{
  "bill_of_lading_number": {
    "value": "XYZ123456"
  }
}
```

### Shipper

* **Shipper**: The party responsible for shipping the goods.
  * **name**: The name of the shipper.
  * **address**: The address of the shipper.
  * **phone**: the phone number of the shipper.
  * **email**: the email address of the shipper.

```json
{
  "shipper": {
    "address": "123 OCEAN DRIVE, SHANGHAI, CHINA",
    "email": null,
    "name": "GLOBAL FREIGHT SOLUTIONS INC.",
    "phone": "86-21-12345678"
  }
}
```

### Consignee

* **consignee**: The party to whom the goods are being shipped.
  * **name**: The name of the consignee.
  * **address**: The address of the consignee.
  * **phone**: the phone number of the consignee.
  * **email**: the email address of the consignee.

```json
{
  "consignee": {
    "address": "789 TRADE STREET, SINGAPORE 567890, SINGAPORE",
    "email": null,
    "name": "PACIFIC TRADING CO.",
    "phone": "65-65432100"
  }
}
```

### Notify Party

* **notify\_party**: The party to be notified of the arrivals of the goods.
  * **name**: The name of the notify party.
  * **address**: The address of the notify party.
  * **phone**: the phone number of the notify party.
  * **email**: the email address of the notify party.

```json
{
  "notify_party": {
    "address": "789 TRADE STREET, SINGAPORE 567890, SINGAPORE",
    "email": null,
    "name": "PACIFIC TRADING CO.",
    "phone": "65-65432100"
  }
}
```

### Carrier

* **carrier**: The shipping company responsible for the transport of the good.
  * **name**: The name of the carrier.
  * **professional\_number**: The professional number of the carrier.
  * **scac**: The Standard Carrier Alpha Code (SCAC) of the carrier.

```json
{
  "carrier": {
    "name": "GLOBAL SHIPPING CO",
    "professional_number": null,
    "scac": null
  }
}
```

### Items

* **carrier\_items**: The goods being shipped.
  * **description:** A description of the item.
  * **quantity:** The quantity of the item being shipped.
  * **gross\_weight:** The gross weight of the item.
  * **weight\_unit:** The unit of measurement for weights.
  * **measurement:** The measurement of the item.
  * **measurement\_unit:** The unit of measurement for the measurement.

```json
{
  "carrier_items": [
    {
      "description": "ELECTRONIC COMPONENTS\nP/N: 12345\nDRAWING NO. A1B2C3\nP/O: 987654\nLOT NO. 112233\nMADE IN CHINA",
      "gross_weight": 500,
      "measurement": 1.5,
      "measurement_unit": "cbm",
      "quantity": 50,
      "weight_unit": "kgs"
    }
  ]
}
```

### Port of loading

* **port\_of\_loading**: The port where the goods are loaded on the vessel.

```json
{
  "port_of_loading": {
    "value": "SHANGHAI, CHINA"
  }
}
```

### Port of Discharge

* **port\_of\_discharge**: The port where the goods are unloaded on the vessel.

```json
{
  "port_of_discharge": {
    "value": "LOS ANGELES, USA"
  }
}
```

### Place of Delivery

* **place\_of\_delivery**: The place where the goods are to be delivered.

```json
{
  "place_of_delivery": {
    "value": "456 SHIPPING LANE, LOS ANGELES, CA 90001, USA"
  }
}
```

### Date of Issue

* **date\_of\_issue**: The date when the bill lading is issued.

```json
{
  "date_of_issue": {
    "value": "2022-09-30"
  }
}
```

### Departure Date

* **departure\_date**: The date when the vessel departs from the port of loading.

```json
{
  "departure_date": {
    "value": null
  }
}
```
