Passport - India OCR

Mindee’s Passport - Indian OCR API uses deep learning to automatically, accurately, and instantaneously parse your documents details. In a few seconds, the API extracts a set of data from your PDFs or photos of indian passport, including:

Page Number
Country Code
Identity Number
Given Name(s)
Surname
Date of Birth
Place of Birth
Place of Issue
Gender
Issuance Date
Expiry Date
MRZ Row #1
MRZ Row #2
Name of legal guardian
Name of spouse
Name of mother
Old passport date of issue
Old passport number
Address line #1
Address line #2
Address line #3
Old passport place of issue
File number

The Passport - Indian OCR API only supports two pages of Indian passports. The passports from other nationalities and states are not supported with this model, you can use International Passport API instead.

Set up the API

Create an API key

To begin using the Mindee V1 OCR API, your first step is to create your V1 API key.

To test your API, you can use the sample document provided below.

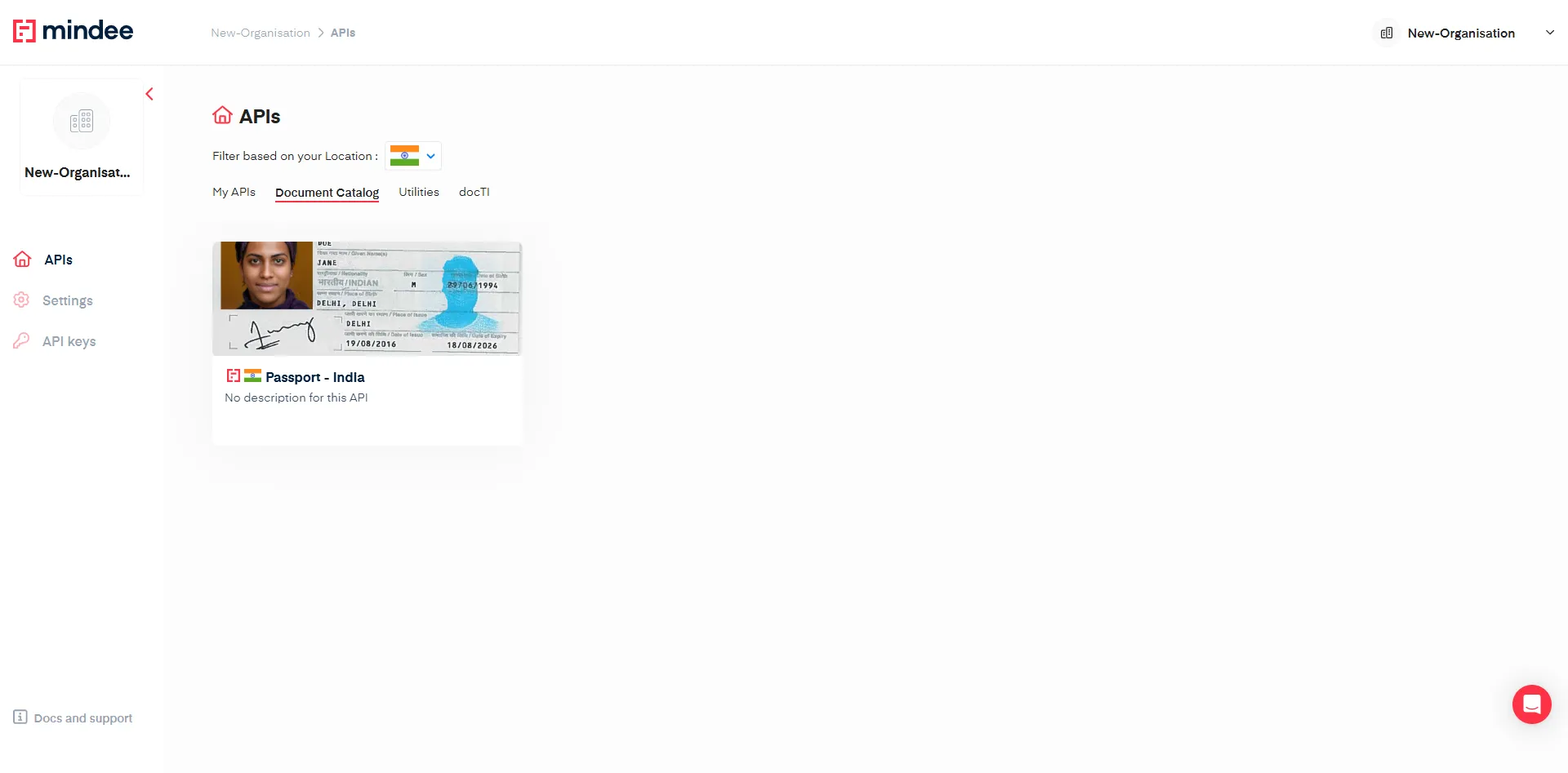

Access your Passport - Indian API by clicking on the corresponding product card in the Document Catalog

From the left navigation, go to documentation > API Reference, you'll find sample code in popular languages and command line.

from mindee import Client, AsyncPredictResponse, product

# Init a new client
mindee_client = Client(api_key="my-api-key-here")

# Add the corresponding endpoint (document). Set the account_name to "mindee" if you are using OTS.
my_endpoint = mindee_client.create_endpoint(
    account_name="mindee",
    endpoint_name="ind_passport",
    version="1"
)

# Load a file from disk
input_doc = mindee_client.source_from_path("/path/to/the/file.ext")

# Parse the file.
# The endpoint must be specified since it cannot be determined from the class.
result: AsyncPredictResponse = mindee_client.enqueue_and_parse(
    product.GeneratedV1,
    input_doc,
    endpoint=my_endpoint
)

# Print a brief summary of the parsed data
print(result.document)

# # Iterate over all the fields in the document
# for field_name, field_values in result.document.inference.prediction.fields.items():
#     print(field_name, "=", field_values)

const mindee = require("mindee");
// for TS or modules:
// import * as mindee from "mindee";

// Init a new client
const mindeeClient = new mindee.Client({ apiKey: "my-api-key-here" });

// Load a file from disk
const inputSource = mindeeClient.docFromPath("/path/to/the/file.ext");

// Create a custom endpoint for your product
const customEndpoint = mindeeClient.createEndpoint(
  "ind_passport",
  "mindee",
  "1" // Defaults to "1"
);

// Parse the file asynchronously.
const asyncApiResponse = mindeeClient.enqueueAndParse(
  mindee.product.GeneratedV1,
  inputSource,
  { endpoint: customEndpoint }
);

// Handle the response Promise
asyncApiResponse.then((resp) => {
  // print a string summary
  console.log(resp.document.toString());
});

using Mindee;
using Mindee.Input;
using Mindee.Http;
using Mindee.Product.Generated;

string apiKey = "my-api-key-here";
string filePath = "/path/to/the/file.ext";

// Construct a new client
MindeeClient mindeeClient = new MindeeClient(apiKey);

// Load an input source as a path string
// Other input types can be used, as mentioned in the docs
var inputSource = new LocalInputSource(filePath);

// Set the endpoint configuration
CustomEndpoint endpoint = new CustomEndpoint(
    endpointName: "ind_passport",
    accountName: "mindee",
    version: "1"
);

// Call the product asynchronously with auto-polling
var response = await mindeeClient
    .EnqueueAndParseAsync<GeneratedV1>(inputSource, endpoint);

// Print a summary of all the predictions
System.Console.WriteLine(response.Document.ToString());

// Print only the document-level predictions
// System.Console.WriteLine(response.Document.Inference.Prediction.ToString());

#
# Install the Ruby client library by running:
# gem install mindee
#

require 'mindee'

# Init a new client
mindee_client = Mindee::Client.new(api_key: 'my-api-key')

# Load a file from disk
input_source = mindee_client.source_from_path('/path/to/the/file.ext')

# Parse the file
result = mindee_client.parse(
  input_source,
  Mindee::Product::IND::IndianPassport::IndianPassportV1
)

# Print a full summary of the parsed data in RST format
puts result.document

# Print the document-level parsed data
# puts result.document.inference.prediction

import com.mindee.MindeeClient;
import com.mindee.input.LocalInputSource;
import com.mindee.parsing.common.AsyncPredictResponse;
import com.mindee.product.generated.GeneratedV1;
import com.mindee.http.Endpoint;
import java.io.File;
import java.io.IOException;

public class SimpleMindeeClient {

  public static void main(String[] args) throws IOException, InterruptedException {
    String apiKey = "my-api-key-here";
    String filePath = "/path/to/the/file.ext";

    // Init a new client
    MindeeClient mindeeClient = new MindeeClient(apiKey);

    // Load a file from disk
    LocalInputSource inputSource = new LocalInputSource(new File(filePath));

    // Configure the endpoint
    Endpoint endpoint = new Endpoint(
        "ind_passport",
        "mindee",
        "1"
    );

    // Parse the file asynchronously
    AsyncPredictResponse<GeneratedV1> response = mindeeClient.enqueueAndParse(
        GeneratedV1.class,
        endpoint,
        inputSource
    );

    // Print a summary of the response
    System.out.println(response.toString());

    // Print a summary of the predictions
//  System.out.println(response.getDocumentObj().toString());

    // Print the document-level predictions
//    System.out.println(response.getDocumentObj().getInference().getPrediction().toString());

    // Print the page-level predictions
//    response.getDocumentObj().getInference().getPages().forEach(
//        page -> System.out.println(page.toString())
//    );
  }

}

API_KEY='my-api-key-here'
ACCOUNT='mindee'
ENDPOINT='ind_passport'
VERSION='1'
FILE_PATH='/path/to/your/file.png'

# Maximum amount of retries to get the result of a queue
MAX_RETRIES=10

# Delay between requests
DELAY=6

# Enqueue the document for async parsing
QUEUE_RESULT=$(curl -sS --request POST \
  -H "Authorization: Token $API_KEY" \
  -H "Content-Type: multipart/form-data" \
  -F "document=@$FILE_PATH" \
  "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/predict_async")

# Status code sent back from the server
STATUS_CODE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']status_code[\"|']:[\s][\"|']*[a-zA-Z0-9-]*" | rev | cut --complement -f2- -d" " | rev)

# Check that the document was properly queued
if [ -z "$STATUS_CODE" ] || [ "$STATUS_CODE" -gt 399 ] || [ "$STATUS_CODE" -lt 200 ]
then
  if [ -z "$STATUS_CODE" ]
  then
    echo "Request couldn't be processed."
    exit 1
  fi
  echo "Error $STATUS_CODE was returned by API during enqueuing. "

  # Print the additional details, if there are any:
  ERROR=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']error[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
  if [ -z "$ERROR" ]
  then
    exit 1
  fi

  # Details on the potential error:
  ERROR_CODE=$(echo "$ERROR" | grep -oP "[\"|']code[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  MESSAGE=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']message[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  DETAILS=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']details[\"|']:[\s]\"[^(\"|\')]*" | rev | cut --complement -f2- -d"\"" | rev)
  echo "This was the given explanation:"
  echo "-------------------------"
  echo "Error Code: $ERROR_CODE"
  echo "Message: $MESSAGE"
  echo "Details: $DETAILS"
  echo "-------------------------"
  exit 1
else

  echo "File sent, starting to retrieve from server..."

  # Get the document's queue ID
  QUEUE_ID=$(echo "$QUEUE_RESULT" | grep -oP "[\"|']id[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)

  # Amount of attempts to retrieve the parsed document were made
  TIMES_TRIED=1

  # Try to fetch the file until we get it, or until we hit the maximum amount of retries
  while [ "$TIMES_TRIED" -lt "$MAX_RETRIES" ]
  do
    # Wait for a bit at each step
    sleep $DELAY

    # Note: we use -L here because the location of the file might be behind a redirection
    PARSED_RESULT=$(curl -sS -L \
      -H "Authorization: Token $API_KEY" \
      "https://api.mindee.net/v1/products/$ACCOUNT/$ENDPOINT/v$VERSION/documents/queue/$QUEUE_ID")

    # Isolating the job (queue) & the status to monitor the document
    JOB=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']job[\"|']:[\s]\{[^\}]*" | rev | cut --complement -f2- -d"{" | rev)
    QUEUE_STATUS=$(echo "$JOB" | grep -ioP "[\"|']status[\"|']:[\s][\"|'][a-zA-Z0-9-]*" | rev | cut --complement -f2- -d"\"" | rev)
    if [ "$QUEUE_STATUS" = "completed" ]
    then
      # Print the result
      echo "$PARSED_RESULT"

      # Optional: isolate the document:
      # DOCUMENT=$(echo "$PARSED_RESULT" | grep -ioP "[\"|']document[\"|']:[\s].*([\"|']job[\"|'])" | rev | cut -f2- -d"," | rev)
      # echo "{$DOCUMENT}"

      # Remark: on compatible shells, fields can also be extracted through the use of tools like jq:
      # DOCUMENT=$(echo "$PARSED_RESULT" | jq '.["document"]')
      exit 0
    fi
    TIMES_TRIED=$((TIMES_TRIED+1))
  done
fi

echo "Operation aborted, document not retrieved after $TIMES_TRIED tries"
exit 1

<?php

use Mindee\Client;
use Mindee\Product\Generated\GeneratedV1;
use Mindee\Input\PredictMethodOptions;

// Init a new client
$mindeeClient = new Client("my-api-key-here");

// Load a file from disk
$inputSource = $mindeeClient->sourceFromPath("/path/to/the/file.ext");

// Create a custom endpoint
$customEndpoint = $mindeeClient->createEndpoint(
    "ind_passport",
    "mindee",
    "1"
);

// Add the custom endpoint to the prediction options.
$predictOptions = new PredictMethodOptions();
$predictOptions->setEndpoint($customEndpoint);

// Parse the file
$apiResponse = $mindeeClient->enqueueAndParse(GeneratedV1::class, $inputSource, $predictOptions);

echo strval($apiResponse->document);

Replace my-api-key-here with your new API key, or use the "select an API key" feature and it will be filled automatically.
Copy and paste the sample code of your desired choice in your application, code environment or terminal.
Replace /path/to/my/file with the path to your document.

Replace my-api-key-here with your new API key, or use the select an API key feature and it will be filled automatically.
Copy and paste the sample code of your desired choice in your application, code environment, terminal etc.
Replace /path/to/the/file.ext with the path to your input document.

Remember to replace with your V1 API key.

Run your code. You will receive a JSON response with your document details.

API Response

Here is the full JSON response you get when you call the API:

{
  "api_request": {
    "error": {},
    "resources": [
      "document",
      "job"
    ],
    "status": "success",
    "status_code": 200,
    "url": "https://api.mindee.net/v1/products/mindee/ind_passport/v1/documents/146bdc5e-05fc-493c-ad6c-7adf956b1c9b"
  },
  "document": {
    "id": "146bdc5e-05fc-493c-ad6c-7adf956b1c9b",
    "inference": {
      "extras": {},
      "finished_at": "2024-11-06T10:26:57.185000",
      "is_rotation_applied": true,
      "pages": [
        {
          "extras": {},
          "id": 0,
          "orientation": {
            "value": 0
          },
          "prediction": {}
        }
      ],
      "prediction": {
        "address1": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "address2": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "address3": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "birth_date": {
          "page_id": 0,
          "polygon": [
            [
              0.754,
              0.406
            ],
            [
              0.909,
              0.406
            ],
            [
              0.909,
              0.439
            ],
            [
              0.754,
              0.439
            ]
          ],
          "value": "1959-09-23"
        },
        "birth_place": {
          "page_id": 0,
          "polygon": [
            [
              0.383,
              0.476
            ],
            [
              0.554,
              0.476
            ],
            [
              0.554,
              0.511
            ],
            [
              0.383,
              0.511
            ]
          ],
          "value": "GUNDUGOLANU"
        },
        "country": {
          "page_id": 0,
          "polygon": [
            [
              0.604,
              0.153
            ],
            [
              0.644,
              0.153
            ],
            [
              0.644,
              0.178
            ],
            [
              0.604,
              0.178
            ]
          ],
          "value": "IND"
        },
        "expiry_date": {
          "page_id": 0,
          "polygon": [
            [
              0.752,
              0.679
            ],
            [
              0.904,
              0.679
            ],
            [
              0.904,
              0.71
            ],
            [
              0.752,
              0.71
            ]
          ],
          "value": "2021-10-10"
        },
        "file_number": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "gender": {
          "page_id": 0,
          "polygon": [
            [
              0.679,
              0.406
            ],
            [
              0.694,
              0.406
            ],
            [
              0.694,
              0.431
            ],
            [
              0.679,
              0.431
            ]
          ],
          "value": "F"
        },
        "given_names": {
          "page_id": 0,
          "polygon": [
            [
              0.386,
              0.302
            ],
            [
              0.58,
              0.302
            ],
            [
              0.58,
              0.331
            ],
            [
              0.386,
              0.331
            ]
          ],
          "value": "JOCELYN MICHELLE"
        },
        "id_number": {
          "page_id": 0,
          "polygon": [
            [
              0.777,
              0.161
            ],
            [
              0.966,
              0.161
            ],
            [
              0.966,
              0.195
            ],
            [
              0.777,
              0.195
            ]
          ],
          "value": "J8369854"
        },
        "issuance_date": {
          "page_id": 0,
          "polygon": [
            [
              0.471,
              0.671
            ],
            [
              0.623,
              0.671
            ],
            [
              0.623,
              0.702
            ],
            [
              0.471,
              0.702
            ]
          ],
          "value": "2011-10-11"
        },
        "issuance_place": {
          "page_id": 0,
          "polygon": [
            [
              0.471,
              0.567
            ],
            [
              0.61,
              0.567
            ],
            [
              0.61,
              0.603
            ],
            [
              0.471,
              0.603
            ]
          ],
          "value": "HYDERABAD"
        },
        "legal_guardian": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "mrz1": {
          "page_id": 0,
          "polygon": [
            [
              0.078,
              0.785
            ],
            [
              0.876,
              0.785
            ],
            [
              0.876,
              0.854
            ],
            [
              0.078,
              0.854
            ]
          ],
          "value": "P<DOE<<JOCELYNMICHELLE<<<<<<<<<<<<<<<<<<<<<"
        },
        "mrz2": {
          "page_id": 0,
          "polygon": [
            [
              0.072,
              0.839
            ],
            [
              0.874,
              0.839
            ],
            [
              0.874,
              0.913
            ],
            [
              0.072,
              0.913
            ]
          ],
          "value": "J8369854<4IND5909234F2110101<<<<<<<<<<<<<<<8"
        },
        "name_of_mother": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "name_of_spouse": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "old_passport_date_of_issue": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "old_passport_number": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "old_passport_place_of_issue": {
          "page_id": null,
          "polygon": [],
          "value": null
        },
        "page_number": {
          "value": "1"
        },
        "surname": {
          "page_id": 0,
          "polygon": [
            [
              0.387,
              0.217
            ],
            [
              0.43,
              0.217
            ],
            [
              0.43,
              0.234
            ],
            [
              0.387,
              0.234
            ]
          ],
          "value": "DOE"
        }
      },
      "processing_time": 6.714,
      "product": {
        "features": [
          "page_number",
          "country",
          "id_number",
          "given_names",
          "surname",
          "birth_date",
          "birth_place",
          "issuance_place",
          "gender",
          "issuance_date",
          "expiry_date",
          "mrz1",
          "mrz2",
          "legal_guardian",
          "name_of_spouse",
          "name_of_mother",
          "old_passport_date_of_issue",
          "old_passport_number",
          "address1",
          "address2",
          "address3",
          "old_passport_place_of_issue",
          "file_number"
        ],
        "name": "mindee/ind_passport",
        "type": "standard",
        "version": "1.0"
      },
      "started_at": "2024-11-06T10:26:50.294000"
    },
    "n_pages": 1,
    "name": "0e8d47d-indian_passport1.jpg"
  },
  "job": {
    "available_at": "2024-11-06T10:26:57.206000",
    "error": {},
    "id": "5b24333c-b91e-4f37-ade0-3c224cd890af",
    "issued_at": "2024-11-06T10:26:50.294000",
    "status": "completed"
  }
}

You can find the prediction within the prediction key found in document > inference > prediction for document-level predictions: it contains the different fields extracted at the document level, meaning that for multi-pages PDFs, we reconstruct a single object using all the pages.

Each predicted field may contain one or several values including:

a polygon highlighting the information location
a page_id where the information was found (document level only)

Extracted data

Using the above document example the following are the basic fields that can be extracted.

Page Number

page_number: The page number of the passport document.

{
  "page_number": {
    "value": "1"
  }
}

Country

country: ISO 3166-1 alpha-3 country code (3 letters format).

{
  "country": {
    "page_id": 0,
    "polygon": [
      [
        0.604,
        0.153
      ],
      [
        0.644,
        0.153
      ],
      [
        0.644,
        0.178
      ],
      [
        0.604,
        0.178
      ]
    ],
    "value": "IND"
  }
}

Id Number

id_number: The identification number of the passport document.

{
  "id_number": {
    "page_id": 0,
    "polygon": [
      [
        0.777,
        0.161
      ],
      [
        0.966,
        0.161
      ],
      [
        0.966,
        0.195
      ],
      [
        0.777,
        0.195
      ]
    ],
    "value": "J8369854"
  }
}

Given Names

given_names: The given names of the passport holder.

{
  "given_names": {
    "page_id": 0,
    "polygon": [
      [
        0.386,
        0.302
      ],
      [
        0.58,
        0.302
      ],
      [
        0.58,
        0.331
      ],
      [
        0.386,
        0.331
      ]
    ],
    "value": "JOCELYN MICHELLE"
  }
}

Surname

surname: The surname of the passport holder.

{
  "surname": {
    "page_id": 0,
    "polygon": [
      [
        0.387,
        0.217
      ],
      [
        0.43,
        0.217
      ],
      [
        0.43,
        0.234
      ],
      [
        0.387,
        0.234
      ]
    ],
    "value": "DOE"
  }
}

Birth Date

birth_date: The birth date of the passport holder, ISO format: YYYY-MM-DD.

{
  "birth_date": {
    "page_id": 0,
    "polygon": [
      [
        0.754,
        0.406
      ],
      [
        0.909,
        0.406
      ],
      [
        0.909,
        0.439
      ],
      [
        0.754,
        0.439
      ]
    ],
    "value": "1959-09-23"
  }
}

Birth Place

birth_place: The birth place of the passport holder.

{
  "birth_place": {
    "page_id": 0,
    "polygon": [
      [
        0.383,
        0.476
      ],
      [
        0.554,
        0.476
      ],
      [
        0.554,
        0.511
      ],
      [
        0.383,
        0.511
      ]
    ],
    "value": "GUNDUGOLANU"
  }
}

Issuance Place

issuance_place: The place where the passport was issued.

{
  "issuance_place": {
    "page_id": 0,
    "polygon": [
      [
        0.471,
        0.567
      ],
      [
        0.61,
        0.567
      ],
      [
        0.61,
        0.603
      ],
      [
        0.471,
        0.603
      ]
    ],
    "value": "HYDERABAD"
  }
}

Gender

gender: The gender of the passport holder.

{
  "gender": {
    "page_id": 0,
    "polygon": [
      [
        0.679,
        0.406
      ],
      [
        0.694,
        0.406
      ],
      [
        0.694,
        0.431
      ],
      [
        0.679,
        0.431
      ]
    ],
    "value": "F"
  }
}

Issuance Date

issuance_date: The date when the passport was issued, ISO format: YYYY-MM-DD.

{
  "issuance_date": {
    "page_id": 0,
    "polygon": [
      [
        0.471,
        0.671
      ],
      [
        0.623,
        0.671
      ],
      [
        0.623,
        0.702
      ],
      [
        0.471,
        0.702
      ]
    ],
    "value": "2011-10-11"
  }
}

Expiry Date

expiry_date: The date when the passport will expire, ISO format: YYYY-MM-DD.

{
  "expiry_date": {
    "page_id": 0,
    "polygon": [
      [
        0.752,
        0.679
      ],
      [
        0.904,
        0.679
      ],
      [
        0.904,
        0.71
      ],
      [
        0.752,
        0.71
      ]
    ],
    "value": "2021-10-10"
  }
}

MRZ Line 1

mrz1: The first line of the machine-readable zone (MRZ) of the passport document.

{
  "mrz1": {
    "page_id": 0,
    "polygon": [
      [
        0.078,
        0.785
      ],
      [
        0.876,
        0.785
      ],
      [
        0.876,
        0.854
      ],
      [
        0.078,
        0.854
      ]
    ],
    "value": "P<DOE<<JOCELYNMICHELLE<<<<<<<<<<<<<<<<<<<<<"
  }
}

MRZ Line 2

mrz2: The second line of the machine-readable zone (MRZ) of the passport document.

{
  "mrz2": {
    "page_id": 0,
    "polygon": [
      [
        0.072,
        0.839
      ],
      [
        0.874,
        0.839
      ],
      [
        0.874,
        0.913
      ],
      [
        0.072,
        0.913
      ]
    ],
    "value": "J8369854<4IND5909234F2110101<<<<<<<<<<<<<<<8"
  }
}

Legal Guardian

legal_guardian: The name of the legal guardian of the passport holder (if applicable).

{
  "legal_guardian": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Name of Spouse

name_of_spouse: The name of the spouse of the passport holder (if applicable).

{
  "name_of_spouse": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Name of Mother

name_of_mother: The name of the mother of the passport holder.

{
  "name_of_mother": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Old Passport Date of Issue

old_passport_date_of_issue: The date of issue of the old passport (if applicable), ISO format: YYYY-MM-DD.

{
  "old_passport_date_of_issue": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Old passport Number

old_passport_number: The number of the old passport (if applicable).

{
  "old_passport_number": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Address Line 1

address1: The first line of the address of the passport holder.

{
  "address1": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Address Line 2

address2: The second line of the address of the passport holder.

{
  "address2": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Address Line 3

address3: The third line of the address of the passport holder.

{
  "address3": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

Old passport Place of Issue

old_passport_place_of_issue: The place of issue of the old passport (if applicable).

{
  "old_passport_place_of_issue": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

File Number

file_number: The file number of the passport document.

{
  "file_number": {
    "page_id": null,
    "polygon": [],
    "value": null
  }
}

PreviousUS Mail OCR NextBusiness Cards OCR

Last updated 2 days ago

Was this helpful?
